Juki 6716 Overlock

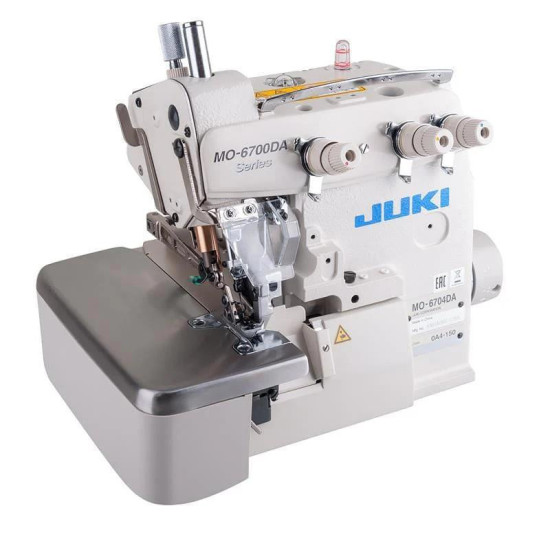

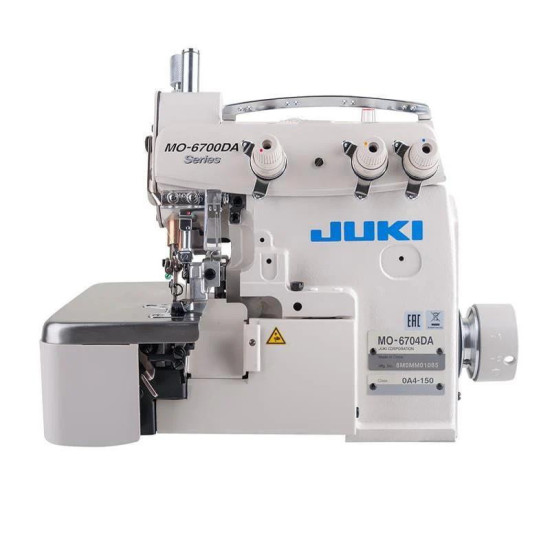

JUKI MO-6716DA 5-Thread Safety Stitch Overlock Serger

The JUKI MO-6716DA is a high-speed, 5-thread safety stitch industrial overlock serger engineered for manufacturers that demand exceptional seam quality, maximum productivity, and protection against oil stains. Supplied complete with a fully submerged industrial sewing table, heavy-duty steel legs, and an energy-efficient servo motor, this production-ready machine is ideal for garment factories, upholstery shops, textile manufacturers, uniform production, and commercial sewing operations.

Built on the legendary MO-6700 platform, the MO-6716DA incorporates JUKI's innovative Semi-Dry Head Technology, dramatically reducing the risk of oil splatter while maintaining the speed and durability that have made the series one of the world's best-selling industrial overlock machines.

Semi-Dry Head Technology

The needle bar and upper looper mechanisms have been redesigned to operate without lubrication, virtually eliminating oil stains on finished products. This advanced design helps reduce costly rework, cleaning, and rejected garments while producing cleaner, higher-quality finished goods.

Special surface treatments on critical drive components and an advanced grease delivery system provide outstanding durability for continuous production. Convenient grease access points make routine maintenance faster and easier while extending machine life.

High-Speed Industrial Performance

With sewing speeds of up to 7,000 stitches per minute, the MO-6716DA delivers smooth, consistent stitching on a wide variety of fabrics. The machine's precision differential feed system prevents puckering and stretching while producing strong, professional safety stitch seams on knit, woven, and stretch materials.

Whether manufacturing apparel, uniforms, activewear, home furnishings, automotive interiors, or technical textiles, the JUKI MO-6716DA offers exceptional reliability, low vibration, and outstanding stitch consistency throughout long production runs.

SHIPPING IS BASED ON A COMMERCIAL ADDRESS WITH FORK LIFT OR LOADING DOCK.  + 150 FOR A RESIDENTIAL

Machine Specifications

• Model: JUKI MO-6716DA
• Stitch Type: 2-Needle, 5-Thread Safety Stitch
• Maximum Sewing Speed: 7,000 Stitches Per Minute
• Stitch Length: 0.6–3.8 mm (up to 4.5 mm)
• Needle Gauge: 3.0 + 2.0 mm / 5.0 + 2.0 mm
• Overedge Width: 1.6, 3.2, 4.0, or 4.8 mm
• Differential Feed Ratio:
  • Gathering: 1:2 (Maximum 1:4)
  • Stretching: 1:0.7 (Maximum 1:0.6)
• Needle Inclination: 20°
• Needle System: DC×27
• Needle Bar Mechanism: Lower Bushing Method
• Presser Foot Lift: 7 mm
• Maximum Presser Foot Pressure: 63.7 N (6.5 kgf)
• Stitch Length Adjustment: Push-Button
• Differential Feed Adjustment: Lever with Micro-Adjustment
• Machine Head Weight: 28 kg
• Lubrication: Automatic (Needle Bar & Upper Looper Require No Lubrication)
• Recommended Oil: JUKI Machine Oil 18 (ISO VG18 Equivalent)
• Needle Cooler: Standard
• Needle Thread Heat Remover: Standard
• Micro Lifter: Optional

Key Features

• Semi-Dry Head technology virtually eliminates oil stains
• High-speed operation up to 7,000 stitches per minute
• Professional 5-thread safety stitch construction
• Automatic lubrication system with lubrication-free needle bar and upper looper
• Differential feed prevents puckering and stretching
• Precision overedge stitching on woven and knit fabrics
• Production-ready with table, stand, and servo motor included
• Ideal for apparel, upholstery, uniforms, automotive interiors, and textile manufacturing
• Legendary JUKI reliability for demanding industrial environments
