NC43 43" Long Arm Sewing Machine

NC43 43" Long Arm Sewing Machine
NC43 43" Long Arm Sewing Machine
NC43 43" Long Arm Sewing Machine
NC43 43" Long Arm Sewing Machine
New
NC43 43" Long Arm Sewing Machine
NC43 43" Long Arm Sewing Machine
NC43 43" Long Arm Sewing Machine
NC43 43" Long Arm Sewing Machine
NC43 43" Long Arm Sewing Machine

The Industry's Largest Long Arm

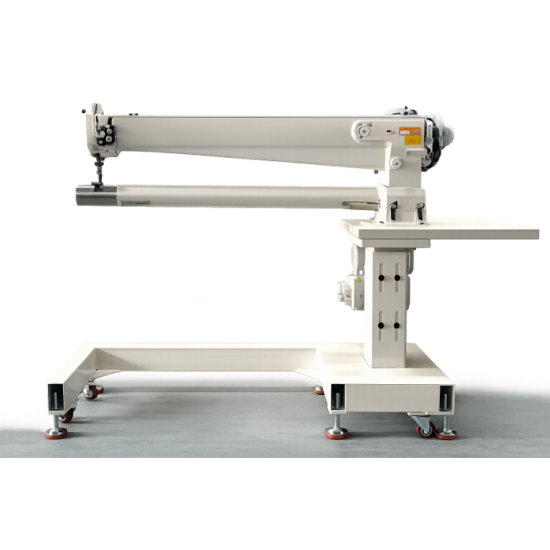

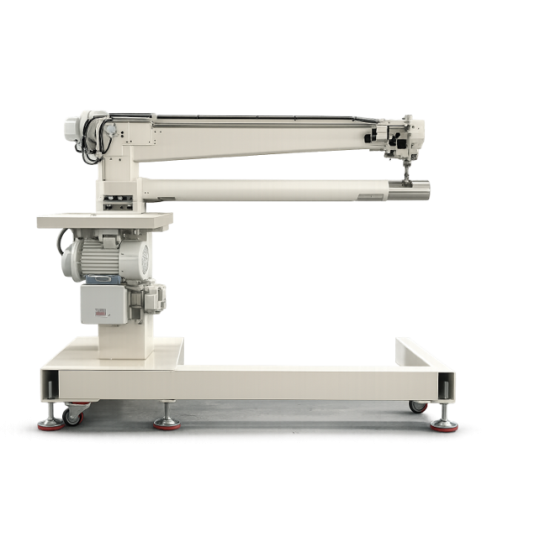

43" Cylinder Bed Long Arm
Provides Optimal Maneuverability

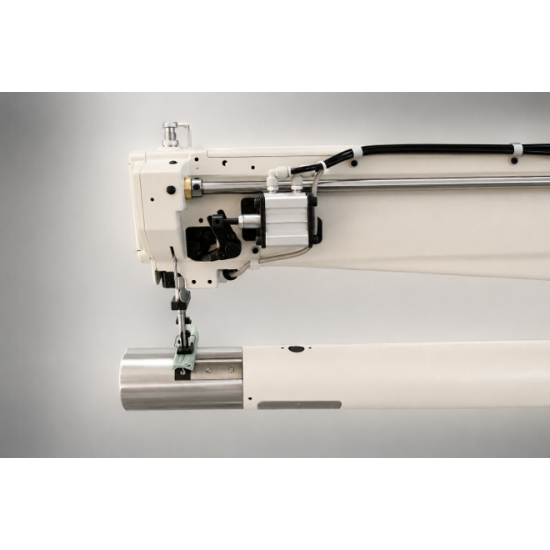

- Compound Walking Foot
- Custom metal workstation with automated motor
- Air Foot Lift, Auto Reverse, Needle Positioner
- High speed, 1 or 2 needle setup
- Extra large size working space under the arm

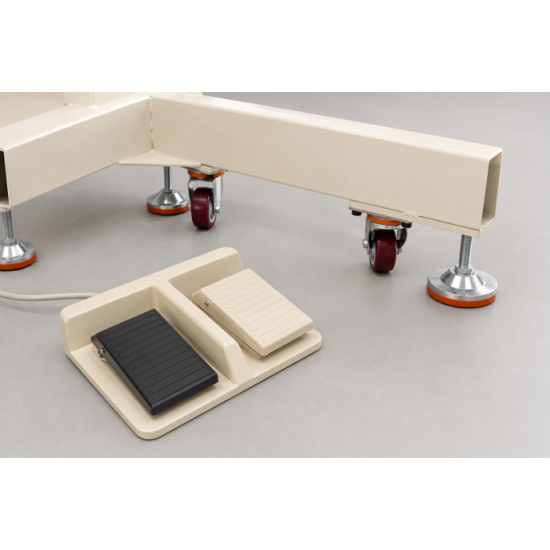

- Setup on industrial locking casters
- Designed for filter bags, pipe covers, dedust bags, and long tubular products
- Stitch length 9MM,  Foot Lift:  16mm, Top load large bobbin

Applications:
Suitable for sewing medium to heavy weight materials, such as:  Tubular shaped products, head rests, furniture corners, filter bags, dedust bags, shoes, hats, etc.


$5,950.00

Add to Cart
Ask Question
Add to Wish List Compare this Product
43" Cylinder Bed Long Arm
- Provides Optimal Maneuverability
- The Industry's Longest Long Arm
- Sew Filter Bags, Golf Bags, etc.

- High speed compound walking foot
- Custom heavy duty mobile workstation with servo motor
- Mobile:  Setup on locking wheels
- 43" Inside Throat Sewing Area, Single Needle
- Air foot lift, Auto Reverse, Auto Needle Positioner
- Foot pedals for optimal comfort and free hands
- Avail: Twin needle price $6350
- Large vertical rotary hook and large bobbin
- Extra large size working space under the arm
- Designed for filter bags, feed bags, dedust bag, pipe covers, and large sized tubular/cylindrical products

Applications:
Suitable for sewing medium to heavy weight materials, such as:  filter bags, golf bags, dedust bags, bags, shoes, head rests, furniture corners, and especially large tubular/cylindrical shaped products.

- Number of needles:  1 or 2 needles
- Diameter of the cylinder:   90mm
- Max.sewing speed:  2000SPM
- Max.stitch length:    9mm
- Max.lift of the presser foot:   16mm
- Hook :  Large vertical rotary hook   ( top load )
- Lubrication system:  Automatic
- Needle system:  135x17 size 22-24    or   DPx17 #19-23

The industry's longest long arm sewing machine is primarily employed to sew filtration bags.  Of course it can be used for any cylindrical sewing application and projects that require sewing deep into material such as sewing golf bags.  The NC43 is a 43" long arm cylinder bed is a compound walking foot industrial sewing machine. It's engineered for precision, productivity, and performance on large tubular products.  The compound walking foot mechanism ensures synchronized feeding of thick or layered materials, preventing slippage and guaranteeing uniform stitches. Designed with a custom workstation and high-torque servo motor, it offers smooth control and consistent power for professional production environments.  With an impressive 43-inch inside throat, this long arm model provides an exceptionally large working area—ideal for oversized and cylindrical applications such as filter bags, dedust bags, luggage, footwear, and industrial textiles. The 90mm cylinder bed and large vertical rotary hook with a top-loading bobbin deliver maximum efficiency and extended thread capacity, minimizing downtime during high-volume operations.

This machine can be configured with one or two needles ($6350), operating at speeds up to 2,000 stitches per minute. It offers a maximum stitch length of 9mm and a presser foot lift of 16mm, accommodating even the thickest assemblies. An automatic lubrication system keeps components running smoothly, reducing maintenance and extending the machine’s life. Engineered specifically for medium to heavy materials, the 43” Long Arm Cylinder Bed machine combines power, space, and precision—making it the ultimate choice for manufacturers of large tubular or awkwardly shaped products who demand reliable, professional-grade results every time.

NEED NEW MACHINES BUT CAN'T WAIT?

Finance Sewing Machines Today:

Marlin Finance has helped our clients finance carpet binding machines for a decade. They're same day credit checks and approvals help make financing an NC Machine easy.  Standard financing & Interest Free Financing programs are available.  Since 1997, we’ve partnered with more than 25,000 dealers, manufacturers and distributors and over 400,000 small businesses to provide customized financing solutions.
